How Does Nuclear Fusion Actually Work?

The Basic Idea

Fusion happens when two light atomic nuclei — typically two heavy forms of hydrogen called deuterium and tritium — are squeezed together so hard that the strong nuclear force takes over. They fuse together into a single helium nucleus, spitting out a high-energy neutron and releasing a massive amount of energy.

This is the exact same process that powers the Sun. The big difference? The Sun has massive gravity helping it crush atoms together. On Earth, we don't have that kind of gravity, so we have to replace the Sun's weight with clever engineering.

Getting It Started

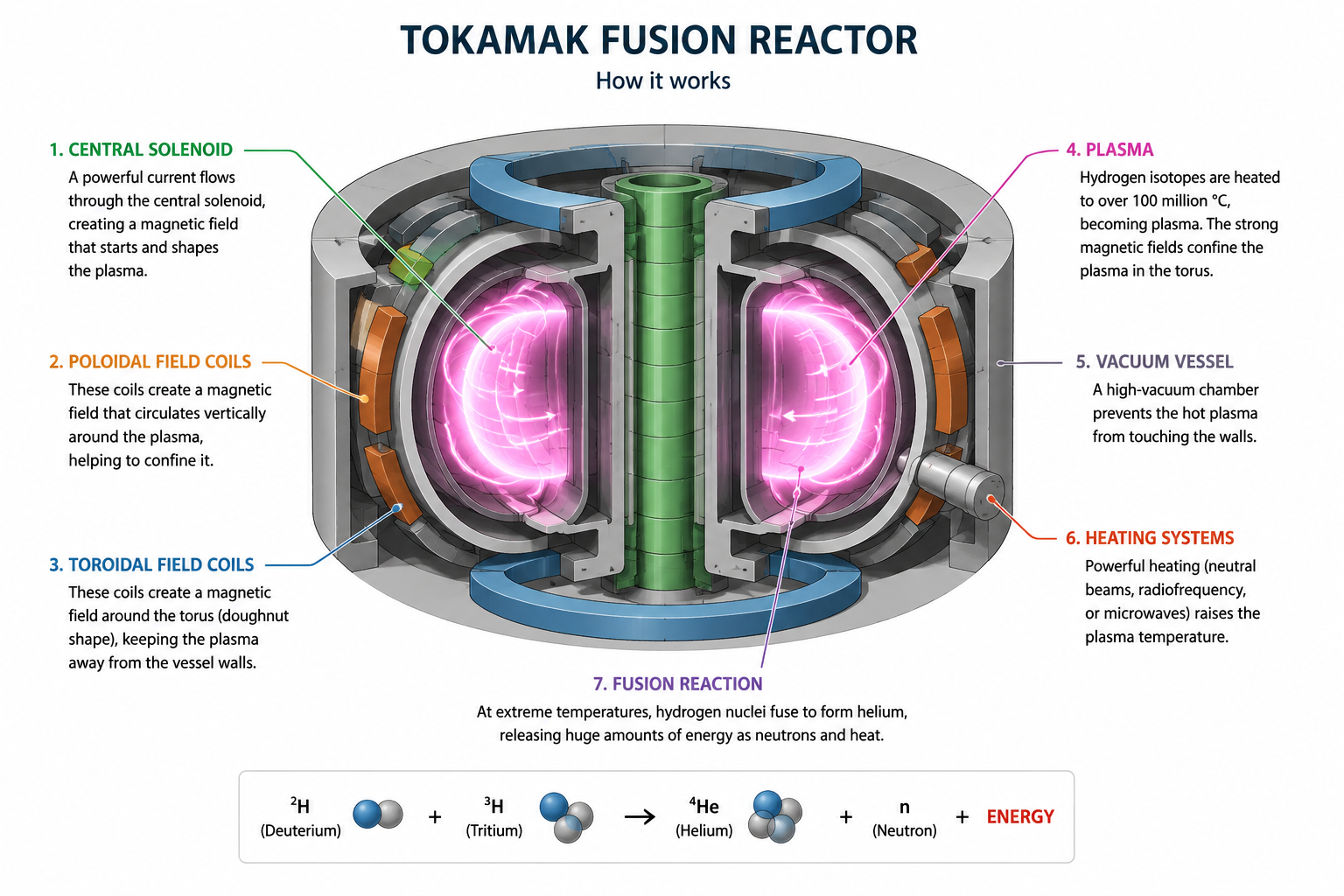

Fusion isn't something you can light with a match. To get the atomic nuclei moving fast enough to overcome their natural resistance to each other, the fuel has to be heated to extreme temperatures. In a donut-shaped reactor called a tokamak, engineers heat the plasma using three main methods at the same time:

• Ohmic Heating — A powerful electric current runs directly through the plasma, heating it up just like electricity heats up the wire in a toaster.
• Neutral Beam Injection — High-energy neutral atoms are shot right into the plasma like tiny billiard balls, transferring their energy through collisions.
• Radio-Frequency Heating — High-power electromagnetic waves — tuned much like high-tech microwaves — beam energy directly into the charged particles.

In contrast, facilities like the National Ignition Facility (NIF) use a completely different technique called inertial confinement: they zap a tiny fuel pellet from all sides using 192 synchronized laser beams, briefly recreating conditions similar to the core of a star.

Regardless of the approach, the goal is to satisfy the Lawson Criterion: finding the perfect balance of temperature, plasma density, and confinement time. You need all three! High temperature alone won't cut it.

The Main Problem

Atomic nuclei are positively charged, so they naturally push away from each other. To force them together, deuterium-tritium fuel has to reach temperatures over 100 million °C — several times hotter than the center of the Sun!

At those extreme temperatures, gas turns into plasma: a superheated soup of free electrons and positive nuclei. Since no solid material on Earth can survive direct contact with something that hot, engineers use powerful magnetic fields to suspend the plasma in mid-air inside the tokamak's donut chamber. You are essentially trying to hold a star inside an invisible magnetic bottle without letting it touch the metal walls.

The Big Milestone (Q > 1)

For fusion to be useful for clean energy, it must produce more energy than it takes to keep the reaction going — a milestone known as net energy breakeven (Q > 1).

In December 2022, scientists at the National Ignition Facility crossed this line for the first time in history: they fired 2.05 Megajoules (MJ) of laser energy at the fuel pellet and got 3.15 MJ of fusion energy back. While this was a monumental physics accomplishment, it wasn't a commercial power plant design. Projects like SPARC are using high-field HTS magnets because that magnetic approach points much more directly toward a practical, commercial grid design.

💡 Quick Unit Check: What Is a Megajoule?

We measure energy in fusion experiments using megajoules (MJ).

• 1 Joule — A tiny unit of energy — roughly what it takes to lift a small apple one meter off the ground.
• 1 Megajoule (MJ) — One million joules!

To give you a real-world feel for what a megajoule looks like:

• A 500-Calorie hamburger contains about 2.1 MJ of chemical energy (enough to power a 100-watt light bulb for almost six hours).
• A gallon of gasoline contains about 132 MJ.
• An average U.S. household uses about 30 kilowatt-hours per day (roughly 108 MJ).
• A bolt of lightning releases about 1 to 5 MJ in a fraction of a second.

Why the NIF result mattered: the NIF experiment produced 3.15 MJ — about the chemical energy in a hamburger and a half — from 2.05 MJ of laser energy. The big deal wasn't the total amount of energy generated; it was the ratio. For the first time ever, a controlled fusion experiment produced more energy than the energy delivered to the fuel. The physics works! Now engineering has to scale up that output by orders of magnitude.

The Fuel Situation

Deuterium — the easy half of the equation! It can be extracted directly from seawater, and the Earth's supply is practically endless.

Tritium — the tricky half. Tritium is radioactive, extremely rare, and very expensive. A commercial power plant can't just buy tritium off the shelf. Instead, it has to breed its own tritium while it operates! The reactor walls will be lined with "breeding blankets" containing lithium. When escaping high-energy neutrons hit the lithium, they produce fresh tritium fuel. That means a future fusion plant is both a power generator and its own fuel factory!

📊 How Does Fusion Compare to Other Energy Sources?

Feature	Fossil Fuels*	Fission (Nuclear)	Renewables	Fusion
Emissions	Pollution	None	None	None
Reliability	Dispatchable	Constant baseload	Variable (weather dependent)	Constant baseload potential
Fuel Supply	Limited but large	Limited, but large	Renewable	Unlimited deuterium; tritium bred in-house
Waste	Ash	Long-lived radioactive waste	Minimal	Short-lived activation waste (decades, not millennia)
Main Risk	Pollution	Meltdown risk & long-term waste	Intermittency / grid storage	Plasma shutdown (reaction simply stops)

Note on safety: fusion is not a chain reaction. If magnetic confinement slips or fails, the plasma instantly cools down and the reaction stops. It can't melt down!

*A future Signal issue will dig deeper into the fossil fuel controversial picture.

---

🏫 Where the Research Happens

If a student asked where the big academic action is taking place today, these universities and labs would top the list:

• MIT (Plasma Science and Fusion Center) — Commonwealth Fusion Systems spun directly out of MIT. Their pioneering work on HTS magnets proved that smaller, high-field tokamaks were realistic.
• Princeton (Plasma Physics Laboratory — PPPL) — Deep roots in magnetic fusion, plasma theory, spherical tokamaks, and exciting concepts for fusion space propulsion.
• University of Rochester (Laboratory for Laser Energetics) — One of the premier academic centers for laser-driven fusion, closely tied to the physics behind NIF's ignition milestone.
• UC San Diego (Center for Energy Research) — Closely linked with General Atomics and DIII-D, the largest operating tokamak research facility in the U.S.
• University of Wisconsin–Madison — Home to the HSX stellarator experiment, exploring an alternative "twisted-donut" reactor design.

Other notable research hubs include UT Austin, Oxford University, Eindhoven University of Technology, and the Max Planck Institute in Germany.

---

🛠️ What It Takes to Work in This Field

The path into fusion starts with electromagnetism. Keeping 100-million-degree plasma trapped inside a magnetic box is essentially Maxwell's equations pushed to the absolute extreme.

While a Ph.D. is usually expected for high-level research at national labs, private fusion companies like CFS, TAE Technologies, and Helion are hiring heavily across many engineering fields:

• Nuclear Engineering — Direct undergraduate path into reactor design.
• Electrical Engineering — Superconducting magnets, high-voltage power systems, and RF heating.
• Mechanical & Materials Engineering — Vacuum vessels, cryogenic cooling systems, and heat-resistant materials.
• Computer Science & Computational Physics — Real-time plasma control algorithms and supercomputer simulations.

Fusion isn't just an academic physics career anymore — it's turning into a full-fledged engineering industry!

---

🚀 Could Fusion Leave Earth?

The most thrilling application of fusion might not be powering cities — it might be exploring deep space.

• Chemical Rockets — Max out at around 450 seconds of specific impulse (fuel efficiency).
• Ion Electric Drives — Super efficient (3,000 to 10,000 seconds), but produce very little thrust — like the push of a piece of paper.
• Fusion Propulsion — Offers high efficiency and powerful thrust at the same time!

The Direct Fusion Drive (DFD) concept being researched at Princeton uses an elongated magnetic container (a field-reversed configuration). Hot plasma is directed out the back through a magnetic nozzle to push the spacecraft forward, while also tapping off electricity to power onboard computers and scientific instruments.
